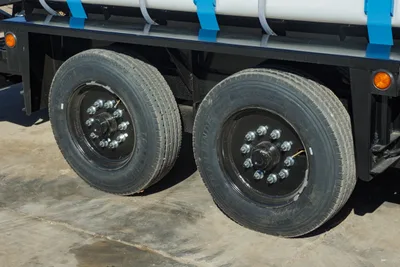

NEW 2023 Belshe T16-2EP Trailer and Mixing System
StraightLine • DHH PM170 — $26,700
Description

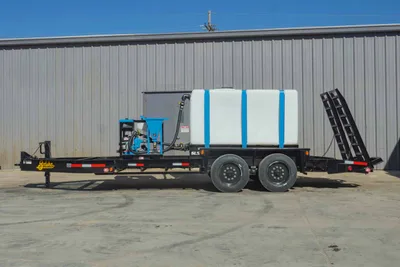

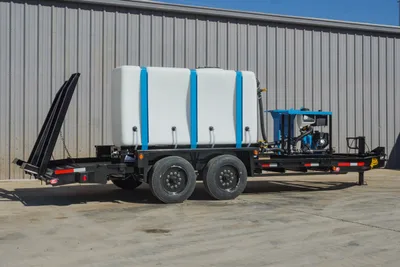

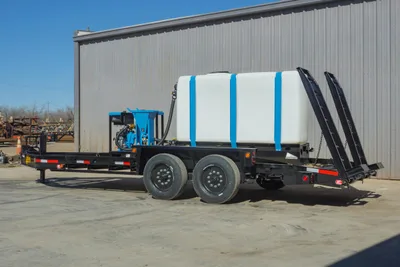

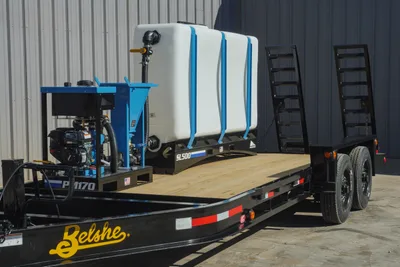

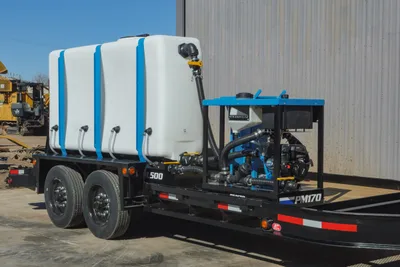

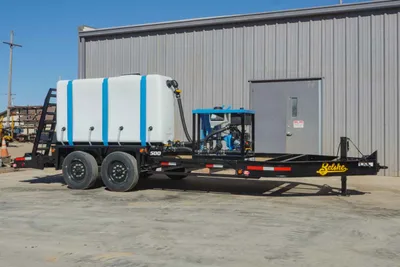

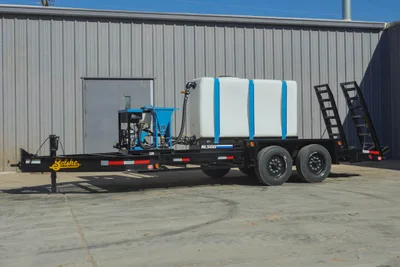

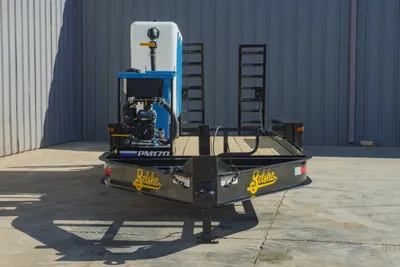

NEW 2023 Belshe T16-2EP Trailer and Mixing System

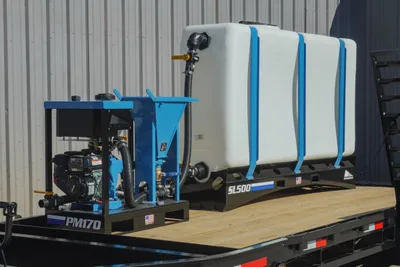

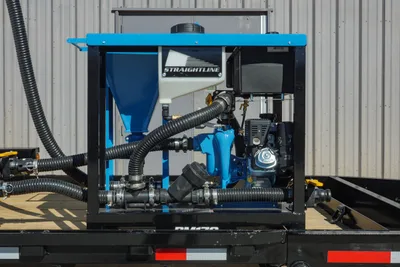

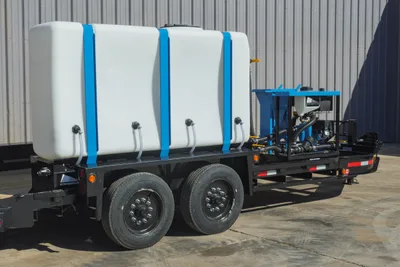

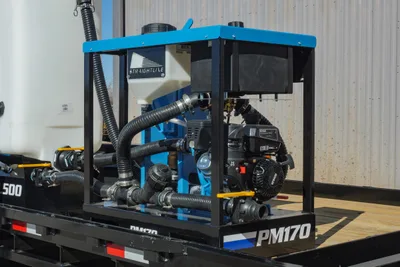

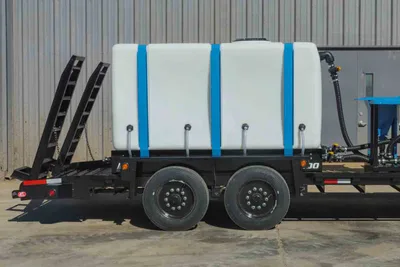

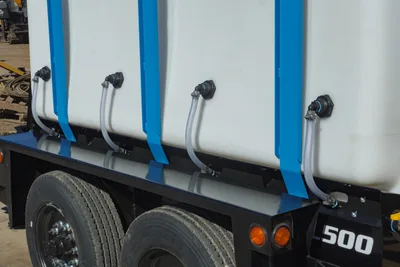

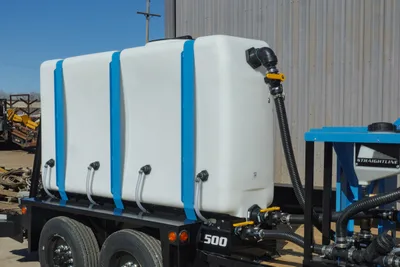

This NEW 2023 Belshe T16-2EP package, available from Source: HDD, offers a reliable solution for heavy-duty transportation needs. This tandem axle equipment 8-ton trailer is designed to easily haul large loads, featuring a robust build and a capacity. Its electric brakes, fold-up ramps, and adjustable hitch ensure safe and stable transport, while the low-profile design provides easy loading and unloading. With heavy-duty tires and a durable frame, the Belshe T16-2EP is perfect for construction, utility, and HDD projects.It also comes packaged with a 2023 StraightLine HDD PM170 bentonite mixing system with a StraightLine HDD SL500 500-gallon tank. Whether moving equipment or materials, this trailer delivers the strength and versatility you need.
Call or click for more details on this Belshe T16-2EP trailer today!
T16-2EP FEATURES |
||

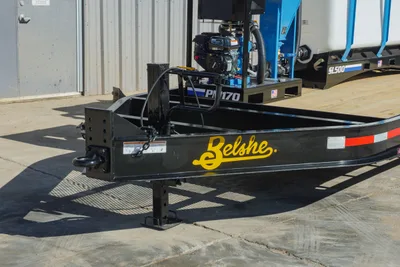

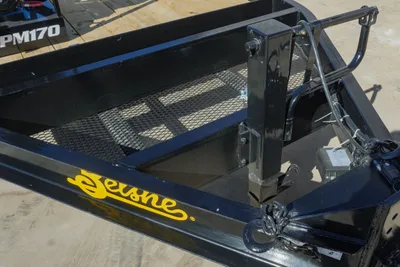

| COUPLING | 2.5” lunette eye | |
| SAFETY CHAINS | .375” grade 70 w/grab hooks | |
| JACK | 12,000 lbs. Drop leg | |

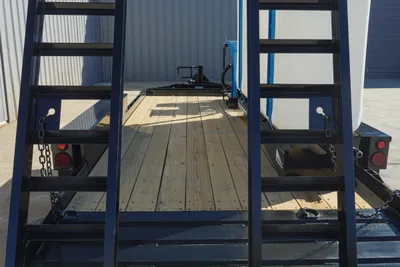

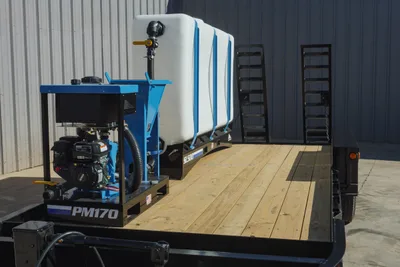

| FLOORING | 2” x 8” nominal lumber | |

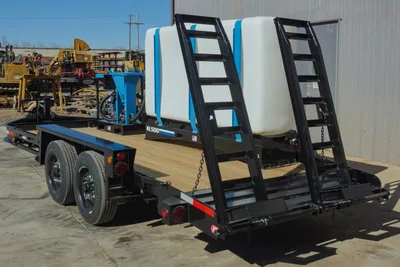

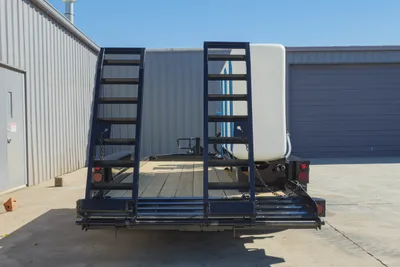

| RAMP | ** | LADDER BAR, SPRING ASSISTED |
| TIE DOWNS | ** | STAKE POCKETS & RUB RAILS & D-RINGS PER THEIR SPECS |
| LIGHTING | 12-volt sealed beam, rubber mounted lights; meets D.O.T. specs | |
| BREAKAWAY SYSTEM | 12-volt w/battery, battery box, tow charger & switch, meets D.O.T. specs | |
| PAINT | ** | Manufacturer’s standard BLACK enamel & primer |
| WARRANTY | 1 year against defects in workmanship & materials |
Specifications

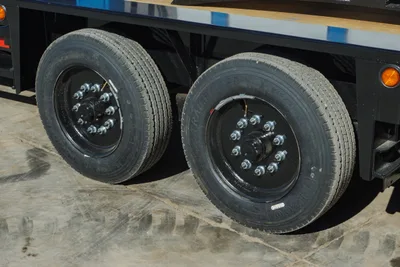

- TIRES
- 215/75R/17.5 Radial 16-ply load range H
- BRAKES
- 12 1/4” x 3 3/8” electric
- TONGUE
- 10” x 15.3 lb. channel A-36
- WEIGHT
- 4,300 lbs
- WHEELS
- 17.5” x 6.75” 10 bolt on 8.75” circle
- FENDERS
- 10 gauge formed
- DOVE WIDTH
- FULL WIDTH
- GVWR (MAX)
- 16,000 lbs.
- SUSPENSION
- 6 leaf 2” wide slipper spring
- DECK HEIGHT
- 22'' Level
- DECK LENGTH
- 16'
- DOVE LENGTH
- 28'' RAISED
- OUTER RAILS
- 3.5” x 6” x .375” angle A-36
- RAMP LENGTH
- 5'
- AXLE CAPACITY
- 8,000 lbs. x 2 each w/grease lube
- CROSS MEMBERS
- 4” x 5.4 lb. channel A-36
- FENDER HEIGHT
- 13'' From Deck
- OVERALL WIDTH
- 100.75''
- TONGUE LENGTH
- 68.5'' to Hitch Plate
- OVERALL LENGTH
- 25'
- BETWEEN FENDER WIDTH
- 80.75”
- TRAILER WEIGHT (MIN)
- 4,460 lbs.
