F5 TRANSMITTERS

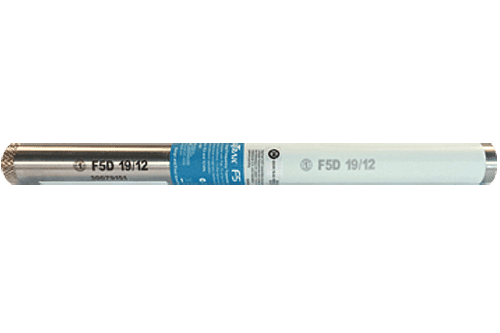

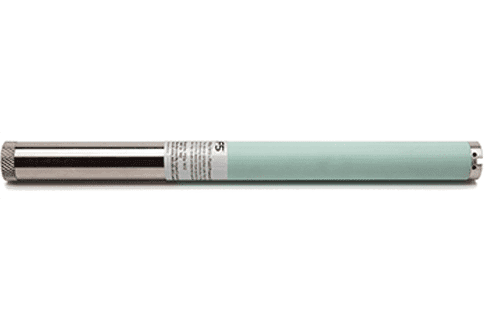

F5® 19.2/12 kHz Dual Frequency 15" Long-Range Fluid Pressure Transmitter
Call for pricing
About DCI Locators
Explore our comprehensive inventory of DCI HDD locating systems, including precision transmitters, receivers, and high-performance remote displays. These industry-standard tracking solutions empower contractors to enhance bore accuracy and job-site safety through real-time telemetry. Browse our current selection to secure the reliable, field-tested guidance technology essential for your next directional drilling project.
WorldHDD stocks 58 DigiTrak products from DCI, shipping nationwide from Miami, FL. The range covers Falcon F1, F2 and F5 receivers and complete systems, Aurora 8-inch and 10-inch remote displays and the Falcon Compact Display, plus transmitters for current and older systems: Falcon wideband and sub-k, F Series, F5, Eclipse and SE.
The receiver and transmitter have to match. Falcon receivers track Falcon wideband transmitters, Eclipse transmitters work with Eclipse systems only, and the regional number on the receiver's startup screen must match the one stamped on the transmitter. We stock transmitters in 8, 15 and 19-inch lengths, in single and dual frequency, fluid pressure and cable versions, along with batteries, chargers, cases, cables and the TensiTrak pullback and pressure monitoring kit. Tell us the receiver you run and we will confirm what works with it before you buy.
- Falcon F1, F2 and F5 receivers, complete systems and Aurora remote displays
- Falcon wideband, sub-k, F Series, F5, Eclipse and SE transmitters in 8, 15 and 19-inch lengths
- Batteries, chargers, cases, cables and TensiTrak pullback and pressure monitoring
- Package pricing with a directional drill, nationwide shipping from Miami, FL
Buyer questions
- Which DigiTrak Falcon receiver do I need?

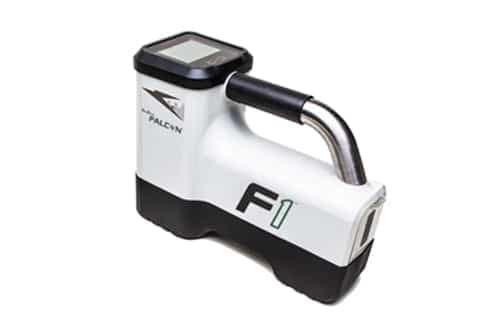

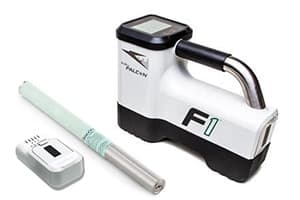

- It depends on your bores and your job sites. The Falcon F1 replaced the DigiTrak SE and is built for short, shallow bores, with a single band from 9.0 to 13.5 kHz. The F2 measures job-site noise and lets you run two optimized frequency bands, for deeper bores in noisy areas. The F5 adds sub-k frequencies to the wideband range, so you can pick the two best bands on sites with heavy active or passive interference.
- Will this transmitter work with my receiver?
- Check two things: the system and the region. Falcon receivers track Falcon wideband transmitters, and Eclipse transmitters work with Eclipse systems only. The regional designation number on the receiver's startup screen must match the number stamped on the transmitter. Send us your receiver model and that number and we will confirm compatibility before you order.
- What is a sub-k transmitter for?

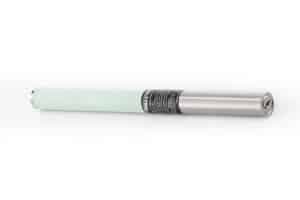

- Sub-k transmitters, such as the Falcon F5 FTR5 series, add very low frequencies (0.33 to 0.75 kHz) to the usual 4.5 to 45 kHz range. That gives the receiver more options on sites where interference blocks the standard bands. They come in 8, 15 and 19-inch lengths.
- Do I need a remote display at the drill?

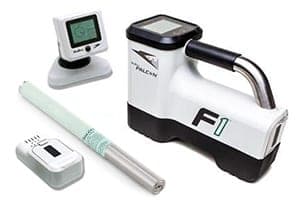

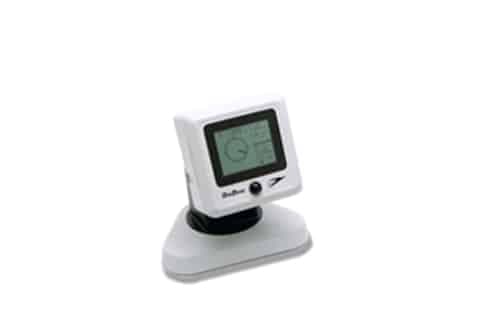

- The receiver sends depth, pitch, roll, temperature and battery data to a remote display at the rig, so the operator steers from live readings. We stock Aurora 8-inch and 10-inch touchscreen displays and the smaller Falcon Compact Display, sold alone or as part of a complete system.
- Can I monitor pullback force and drilling fluid pressure?
- Yes. The TensiTrak kit records pullback force with a 100,000 lb unit, and the DigiTrak F5 fluid pressure transmitter monitors downhole fluid pressure up to 250 psi. Both are in stock and listed with their full kit contents.
Need Help Finding the Right DCI Locators?
Tell us your requirements and WorldHDD will match you with current inventory and financing options.
